Applications · Shipyard
Ship-to-shore and shipyard power
Welding, grinding and tool power aboard a hull under construction or repair, fed from the yard's 600 / 480 VAC supply and delivered as GFCI-protected 240 / 208 / 120 VAC. Units for yards are built to be craned aboard, stacked between jobs, and connected safely by people in a hurry.
Built for the yard

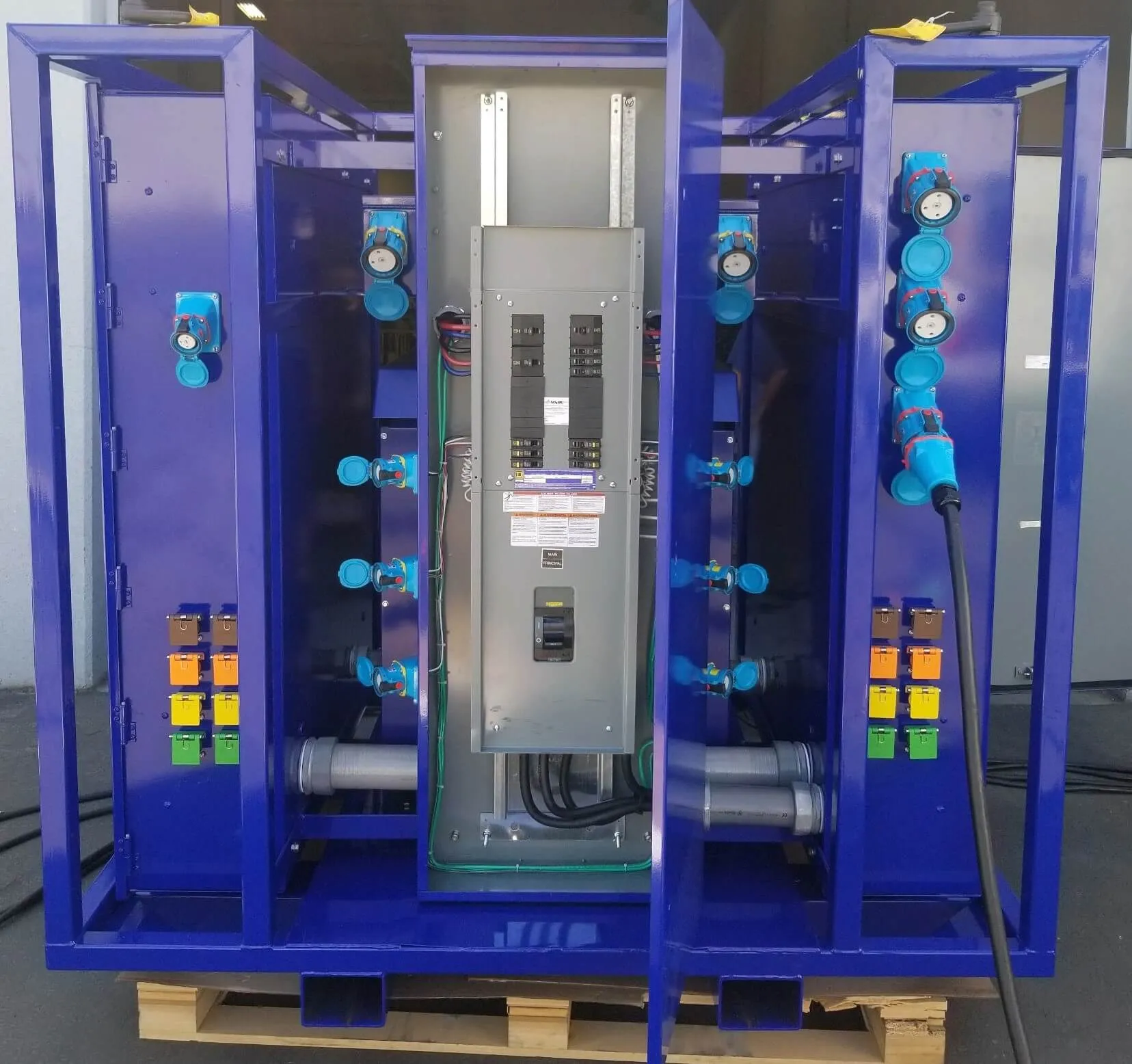

- Decontactor-style receptacles
- NFPA 70E decontactor-style receptacles: the plug switches the load off before it can be withdrawn, so a connection is never broken under load.

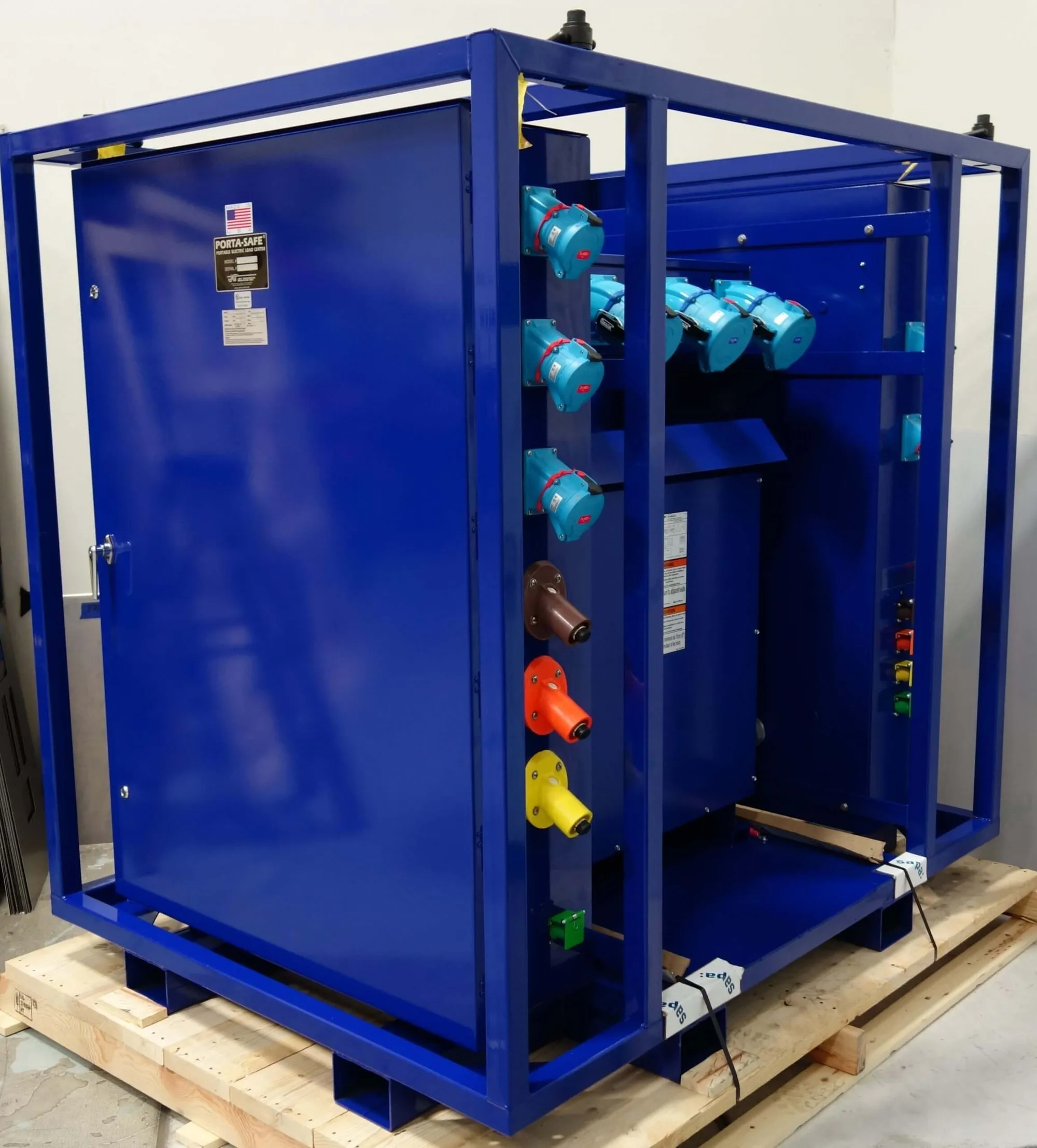

- Stackable, fork-slot skids
- Frames that stack for storage between jobs and lift by crane or fork onto a deck.
- Standards
- NEC-compliant, CSA / UL Listed designs, with designs listed to UL 1640 for shipyard units.
- Scale
- From a two-wheel cart to distribution skids in the 1600 A class, feeding several work fronts from one shore connection.
Documents
- Porta-Safe Shipyard UnitsPDF · 3.4 MBShip-to-shore units: stackable skid, fork-slot and lift-eye designs with NFPA 70E decontactor-style arc flash receptacles.
- Porta-Safe TPU'sPDF · 5.3 MBThe one-page overview: what a Porta-Safe unit is, configurations, and the standards designs are built to.
- Porta-Safe Cart Designer WorksheetPDF · 238 KBThe fillable specification form — input power, receptacles, enclosure and options. Fill it in online instead at /cart-designer/.
